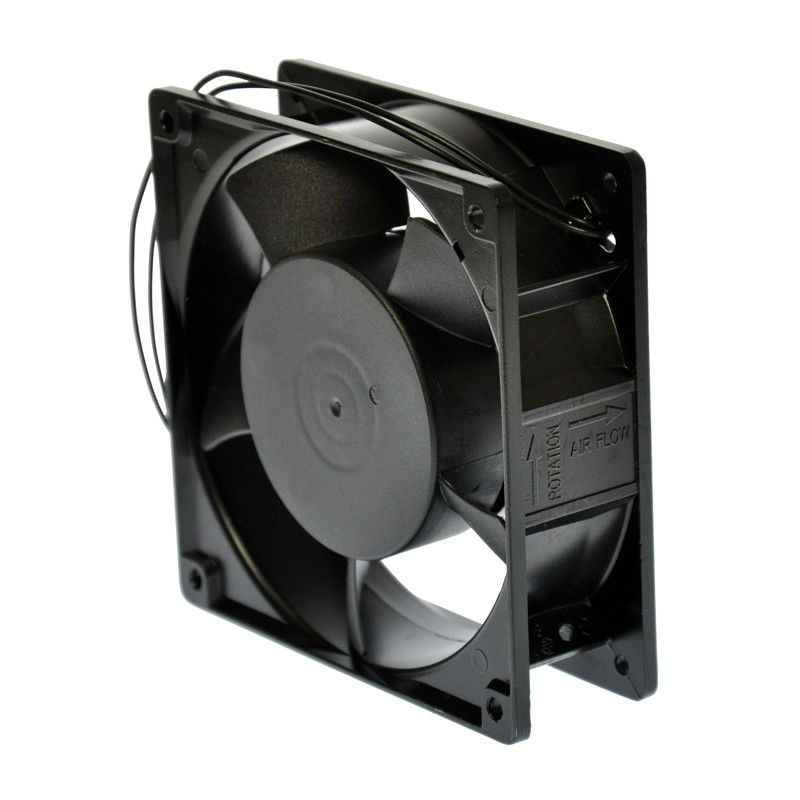

Axial Fan Motor - Term - 132m³/hr - 37DBA View larger

£ 10.26

Axial Fan Motor - Term - 132m³/hr - 37DBA

FM-A-12038-T

New

Pump House


B B

Send to a friend

Axial Fan Motor - Term - 132m³/hr - 37DBA

Axial Fan Motor - Term - 132m³/hr - 37DBA

These axial mini shaded fan motors have a compact structure and small volume.

Recipient :

* Required fields

  or  Cancel

Features

More info

Reviews

Download

Data sheet

Voltage Supply240V
Motor Output Power:20W
Motor Run Speed:2500RPM
Connection:Terminal
Height:120mm
Width:120mm
Depth:26mm
Air Flow:132m³/hr
dB(A) Rating:37.3 dB(A)

More info

These axial mini shaded fan motors have a compact structure and small volume. These fans are made out of reinforced plastic so are light weight, low noise and are used on refrigeration equipment, bottle coolers, vending machines and other ventilating and cooling equipment.

  • Individually boxed complete with fixings.
  • Ambient operating temperature -20°C to +60°C.>
  • Average service life 30,000 hours.
  • Air flow from 40m³/hr – 132m³/hr.
  • CE certified / ROHS2 compliant.
  • 12 month warranty.

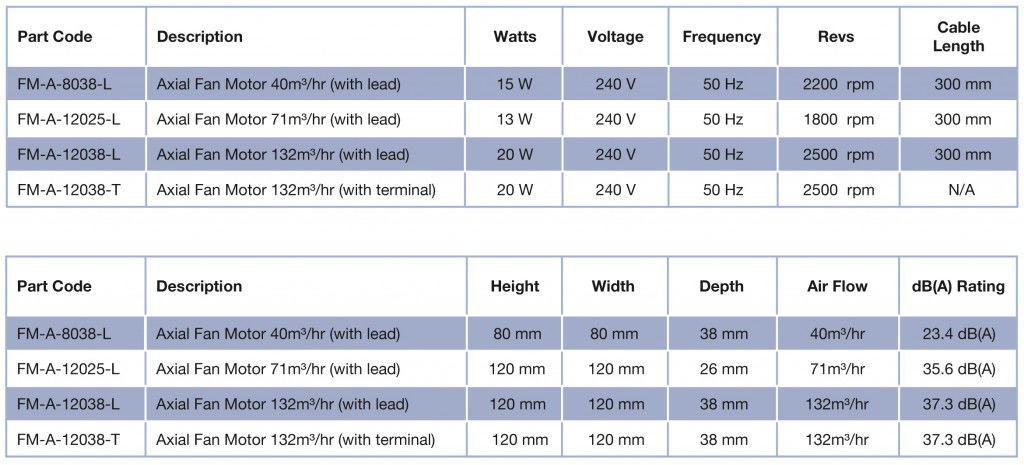

Axial Table

Reviews

No customer comments for the moment.

Write a review

Axial Fan Motor - Term - 132m³/hr - 37DBA

Axial Fan Motor - Term - 132m³/hr - 37DBA

These axial mini shaded fan motors have a compact structure and small volume.

Download

PH Axial Fans

PumpHouse Axial fan specification sheet.

Download (790.31k)
